Belting is necessary....

WEEK 12

Title:Belting system
Objective:To improve the efficiency of this project

Content: Since my project just have the alternator straight away attached to the flywheel therefore I wanted to do some improvement in terms of its efficiency. Without a timing belt my project will not going to work as the belting system helping so much to run the alternator smoothly. First of all, I will to make sure the alternator's pulley is fit enough with the flywheel. Only then the belt can be paired.

Analysis: By doing some observation, I decided to change the pulley of the alternator. The original size of the pulley is very small to place the belt therefore I have change into a bigger one. After the changes have been done, the belt is then paired between the alternator and the flywheel. The problem is solved.

Belt no series/type:4pk1705

Why using alternator rather than generator?

WEEK 11

Title: The purpose of using alternator

Objectives: To clarify the importance of the alternator for this project.

                   To differentiate the alternator and the generator operation



Alternators

Alternators can produce much higher output than generators; current designs on produce over 160 amps. The brushes only carry current to power the rotor (about 7 amps, maximum), so they last far longer than generator brushes do. There are some disadvantages, though. The Lundell alternator requires two watts of power to spin for every one watt that it produces, making it relatively inefficient.

Generators

One of the advantages of generators was very clean electrical output, since they produced pure DC. However, all the current had to travel through the brushes and brush leads; this produced a lot of heat, and when the brushes would pass over the bars in the commutator, small electrical arcs would be produced, which shortened the life of the brush. To counter this, the brushes were made very hard, which wore out the commutator faster. Because all current traveled through the brushes, most generators had a maximum output of 50 amps.

Generators also needed a cut-out relay to disengage power to the generator when not charging. This was done so that the generator would not pick up power and turn into a motor, burning out when not being spun by the engine.

connection

WEEK 10

Title: The assembly of the alternator to the flywheel
Objective: To show how the alternator is rotated at the time the flywheel is also rotates.

PLANNING...

WEEK 10

Title:How to make the bike as a mat?
Objective: To determine the way this project being presented in a clear image

Content: In order to make the bike as a mat, the main thing to modify is the pedal. Imagine that the exercise bike is in the wall, and let the pedal be out of the wall. Therefore there will be only the pedal being seen by people from outside. Alright now focus to design of the pedal, to make it efficient to be used by people, the pedal must be wider that the original pedal. Therefore, the width of the pedal must be adjusted into certain width which can be pressed even people is quite a distance from the wall. At the end of it, the pedal will be look as a mat. Just by wrapping it with cloth based material or anything.

One thing to be considered is how easy people reach the pedal? The easy way is to make some stage. Meaning that there will be a stage being placed near the pedal. In reality the stage will be a platform for people to step in.

Clear image of the project

Springs and its role

WEEK 9

 Title: Springs functionality
Objective: To describe the springs' role and to determine its operation
Content:The procedure to connect the spring with the bike together with its function when the pedal is pressed.

For this week I focusing on the design of the power pedal. But before that, the exercise bike must be modified into something that I want in to be. Therefore, the first thing is I want to connect the spring to one of the exercise pedal. How I want to connect the spring to the pedal? First of all, I will remove the pedal's base as you can see at the picture of the left side the one which is black in color. By removing the base, only then I can make the pedal holder to hold my spring. Alright let see the picture below....

Modification of one side of the pedal

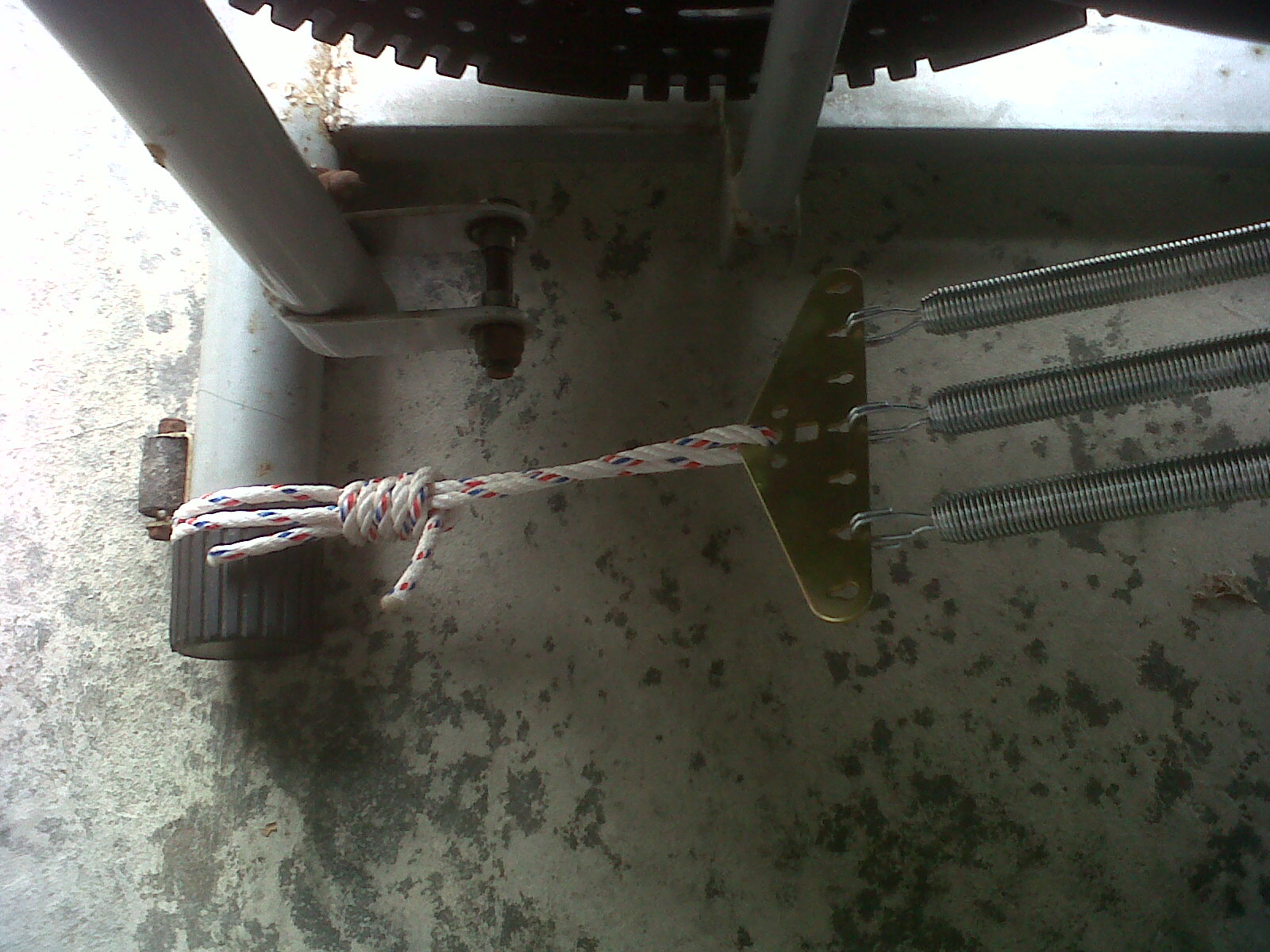

From the picture when the base is removed the thing left is the pedal holder. Now, I will place a hook onto the pedal holder. The hook will hold the springs. But in order to make sure the spring is strained enough therefore I will fasten a rope to it from one end of the exercise bike. The spring will be like below....



How the bike is operate when the springs is being connected? The video shows that when the spring is presence, it forces the flywheel to keep rotate but in different direction. The rotation with presence of the springs is much higher than without the springs.

Analysis: The advantage is that by pressing the pedal once the flywheel will rotates as much possible according to as much as the given pressure while pressing the pedal. As a result, the springs helping the flywheel to rotate more and the time period of the flywheel to stop rotate will be long.
